Auto-Dial Phones


The proxy telephone entry unit is one that strictly autodials. When the button is pushed, the unit begins dialing. It continues dialing programmed numbers until it is answered. The person who answers the call then takes control of the relays. Those relays are then used to remotely control entrances, lights, cameras, etc.

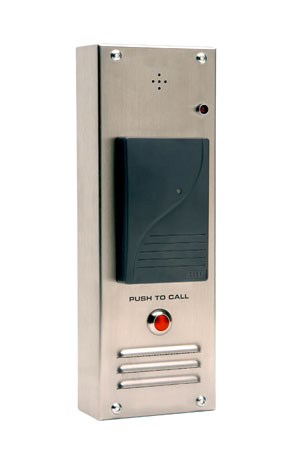

Proxy Automated Phone Entry


Model Number: DC-TEA4

Questions?

Call us at 915-346-4735

OR

Request a Quote!

Operation


When the button is pushed, the Proxy unit calls a programmed telephone number. If the called number is busy or does not answer, the unit will hang up and dial the next number and so on up to 10 numbers. If all the back up numbers are busy or do not answer, it will start at the first number again.

When the call is answered, the resident has the choice to grant entry with their keypad or deny entry by hanging up. If the second relay is connected, the resident can also control that device at this time with their keypad.

The proxy tlephone unit can be programmed with a unique site ID. The proxy unit will transmit the code as tones when the called party presses a key on their telephone. This allows identification even if the caller is unable to speak. A Decoder can be employed to automatically interpret the Site ID and display information regarding that site.

Applications

  • Access Control for office buildings. Employees have access with prox card and all others can have entry granted via the auto dialer.
  • Service / delivery doors.

Add RF Remotes to this unit for easy entry! This allows authorized people to open the relay/door strike/gate at their convenience.

Remote Control for Telephone entry system.







  • Automatically dials a programmed number up to 16-digits. The HF-2 PROX can be programmed to autodial up to 10 numbers for added security.
  • 26-Bit Weigand Proximity Reader on Face of unit.
  • Operates on 12V AC/DC
  • Two output relays for control of one entrance and one additional feature of choice (camera, extra door, etc)
  • Alarm shunt relay aids alarm management.
  • Remotely programmable from any touchtone phone.
  • Programmable site ID.
  • Non-corroding #316 Stainless Steel weather resistant enclosure with tamper resistant security screws.
  • Slim design for easy mounting.
  • Optional Lighted hood provides increased protection in exposed area

Specifications
  • Design - Hands-free autodial telephone
  • Capacity - Up to 10 numbers, each up to 16 digits in length.
  • Site ID - Programmable site ID
  • Programming - Remote via touch tone telephone.
  • Proximity Reader - 26-bit Weigand reader with card. Keychain reader available.
  • Power - 110V/12VAC, 40A, Class 2 transformer included.
  • Output Rating: Power Relays: 5 amps @ 12 VDC or 1 amp @110VAC. Alarm Shunt Relay 250ma @ 12VAC.
  • Output Duration - Programmable, momentary up to 45 seconds.
  • Inputs - Push-to-exit button or postal lock box.
  • Telephone Line - Standard touch tone or rotary. Compatible with most PBX analog ports.
  • Mounting - Surface with flush or pedestal mounts available.
  • Construction:
    • Non-corroding #316 Stainless Steel weather resistant wraparound enclosure with back box and tamper resistant security screws.
  • Operating Temperature: -5ºF to +120º
