Home > Telephone Entry > Auto-Dial Phones > Mini

Automated-Dial Phones


An automated telephone entry unit that strictly autodials. When the button is pushed, the unit begins dialing. The person who answers the call then takes control of the relays. Those relays are then used to remotely control entrances, lights, cameras, etc.

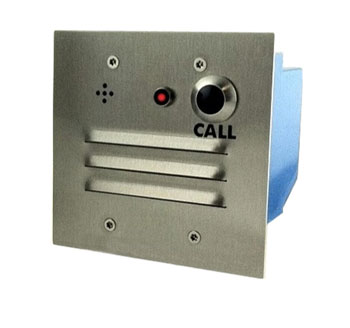

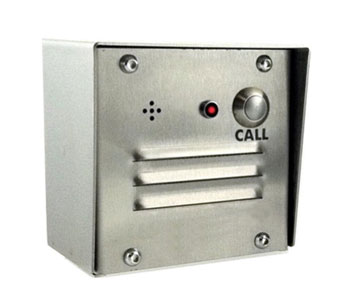

Miniature Automated Phone Entry


Model Number: DC-TEA2

Call for Quote

Free Quote


Operation


When the button is pushed the phone will call a pre-programmed telephone number. When the call is answered, the resident has the choice to grant entry using their phone keypad or deny access.

Applications

  • Allows entrance for anyone whom does not normally gain entrance or does not have a key.
  • Allows contact for offices after hours.
  • Use to call security after hours for employee escort

Add RF Remotes to this unit for easy entry! This allows authorized people to open the relay/door strike/gate at their convenience.

Body Orifice Scanner Features Pic







  • One 24 digit resident telephone number.
  • Called party disconnect.
  • Vandal resistant call button.
  • One normally open/normally closed 5 amp form C relay.
  • Double-baffled water proof speaker.
  • Low noise Microphone housed in a shock resistant chamber for enhanced reliability.
  • Up to five (5) entry phones can share the same telephone line
  • Programmable ring count, gate time, call time, and gate opening tone.
  • Ring down mode available
  • Normally 12 VAC powered with phone line power backup.
  • Will run continuously on phone line power, but will not close the relay.
  • Red flashing and steady ADA light

Specifications
  • Design - Hands-free auto-dial telephone
  • Capacity - One number, up to 24 digits in length.
  • Programming - Remote via touch tone telephone.
  • Power - 110V/12VAC, 20A, Class 2 transformer included.
  • Output Rating: Power Relay: 5 amps @ 12 VDC or 1 amp @110VAC.
  • Output Duration - Programmable, momentary up to 45 seconds.
  • Telephone Line - Standard touch tone. Compatible with most PBX analog ports.
  • Mounting - Surface with flush or pedestal mounts available.
  • Construction:
    • Non-corroding #316 Stainless Steel
    • weather resistant wraparound enclosure
    • with back box and tamper resistant security screws.
  • Operating Temperature: -5ºF to +120ºF
