Push-To-Exit Door Bar otherwise referred to as a crashbar to lock single and double doors at hospitals, buildings, universities

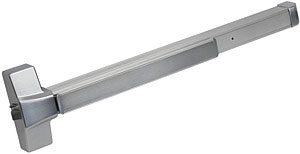

Elite Push-To-Exit Bar

Model Number: DC-PB1

ON SALE

Call us at 915-346-4735

Grade 1 Rugged Rim Exit Bar. Fim-type, dead latch for additional security, reversible, bar can be locked open. UL Listed.

For 30"- 48" Doors

How It works.

When the push-to-exit bar is mounted on the inside of a door to block entry to a protected premises, it securely locks the door from outside access while allowing users from within the protected premises to exit. The stainless steel enclosure protects the exit device from abuse, yet easily unlocks the door from the inside by users who require exit.

Possible Applications.

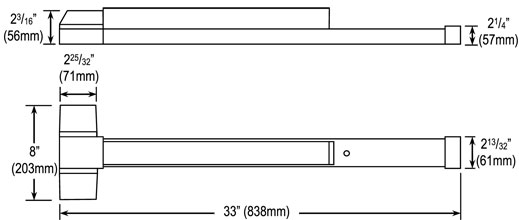

Dimmensions.

Wall Mounted Emergency Phone Strobe

Features
Specifications

Heavy-duty ANSI Grade 1 steel construction.
Allows exit from inside while locked from outside.
Reversible non-handed design.
For metal or wood doors up to 1-3/4" (44mm) thick.
Separate deadlocking latch prevents the use of credit cards or similar means to open the latch bolt.
Allen-type 1/4-turn dogging lock allows the exit device to be unlocked for extended periods of time.
Includes all needed hardware for typical installations.
Works with standard external door handle/lock devices such as the SD-962HL-4A (not included).
Fits doors from 33" (84cm) to 48" (122cm) wide.

Construction: ANSI Grade 1 steel
Door Type: Up to 1-3/4" (44mm) thick, wood or metal
Hand: Non-handed
Latch Bolt: Stainless-steel, 3/4" (19mm) throw
Dead Latch: Stainless-steel 5/8" (16mm)
Strike: For 5/8" (16mm) stop
Spring: Stainless steel
Chasis: Plated steel
Cover: Plated zinc cast
End Cap: plated zinc cast
Dogging: Allen-type dogging standard
Dimmensions: 33"x 8" x 2-3/16" (838x203x56 mm)
Weight: 9-lb 12-oz (4.4kg)
Rail Assembly: Aluminum
